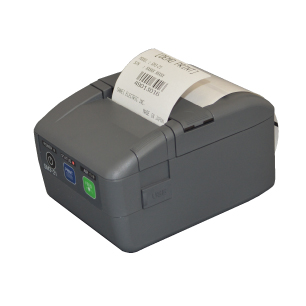

SM3-21

Features

・Super compact・light weight (390g)
・Equipped with label peeler
・Max 100mm/sec high-speed printing *1
(Using peeler unit : Max 62.5mm/sec)
・Paper width 25.4~58mm

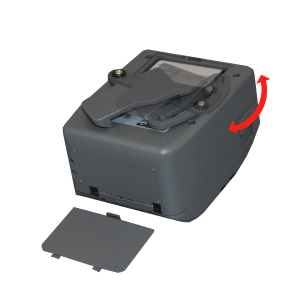

(Adjustable paper guide)
・Max.φ58mm paper roll
・Label printing (Confirm the condition of use)
・Various interface
・Bluetooth(MFI/SPP), USB, Serial,
(Option)Wi-Fi
・Tough body design
・Label design software available

*1:DC7.4、printing ratio 12.5%、standard paper
*Specifications are subject to be changed for improvement without notice.

Specifications
Model

SM3-21

Printing method

Direct line thermal

Resolution

203dpi(8dots/mm)

Print width

Max 384dot / 48mm

Paper width

25.4~58mm (Variable Paper Guide)

Paper thickness

Receipt 59 to 150um
Label 165um or less

Paper roll diameter

Maxφ58mm

Printing speed

Max. 100mm/sec. (Standard), 62.5mm/s (Peeler function)

Print Mode

Receipt/Label/Peeler

Interface

Bluetooth(MFI/SPP), USB, Serial, Wi-Fi

Charactors

ASCⅡ : ASCII, International character, Katakana, PC-437/850 Other Font set for 18 languages
Japanese Font : JIS X 0208-1990
User defined : External,Download character

Font/Dots

ASCⅡ16 dots : 9×16 dots(W×H)
ASCⅡ 24 dots : 12×24 dots(W×H)
Jfont 16 dots : 16×16 dots(W×H)
Jfonrt 24 dots : 24×24 dots(W×H)

Paper Sensors

Paper end sensor/Paper cover sensor/Peeler sensor

Memory

Input buffer 30k bytes
User memory 16k bytes

Logo registration

Down loaded bit image

Barcode

UPC-A/E、JAN13/8、CODE39/93、ITF、CODABAR、CODE128

2D barcode

QR, PDF417

Command systems

ESC/POS compatible
*ESC/POS is registered trade mark of Seiko Epson Corporation.

Regulation

VCCI, FCC, CE, CLASS B

Printing life

Pulse activation : 100million pulses or more
*DC7.4、printing ratio 12.5%

Abrasion resistance : 100Km or more
Peeling label : 600,000 papers or more (label length 50mm)

Power supply

Battery pack DC7.4V, 2000mAH, AC adapter

Current consumption

Standby:100mA or less
Printing : DC 7.4V Average 2.0A rms Peak 5.0A)
Battery life:100m
*Conditions: Continueous print, Printing density 100%.

Operating environment

Temperature: -10℃ to +50℃
Humidity: 20%RH to 85%RH ( No condensation )

Storage environment

Temperature : -20℃ to +60℃
Humidity : 10%RH to 90%RH(No condensation)

Dimensions (W×D×H)

88×120×66.5mm(without protruding parts)

Weight

390g(on battery)

Drop impact robustness

1.5m(by standard)

Water and Dust resistant I

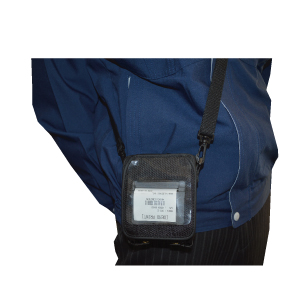

IP54 (With carrying case)

Features

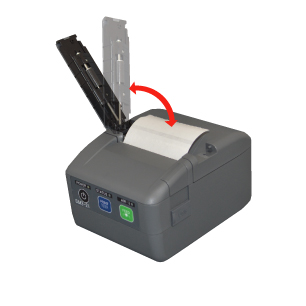

Max.φ58mm paper roll
Label printing

Standard accessories
  • Li-ion battery PL-15-106

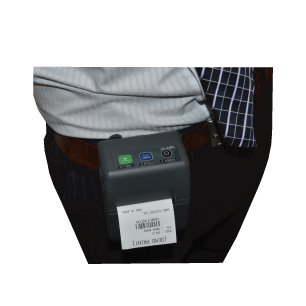

  • Belt Clip, Fixing screw
  • AC Adapter BLM-120J-A
  • Sample paper
Option
