SANEI ELECTRIC INC. 三栄電機株式会社

SM2-41

Features

150mm/sec printing speed *1

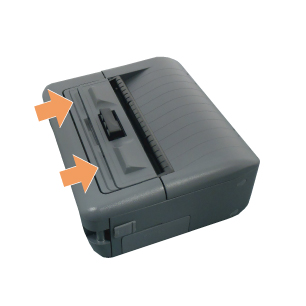

Drop-in paper loading system
Roburst body (fall impact resistance:1m)
Receipt and Peel-Off label model selectable
Various interface (Serial,USB,IrDA,BT and WiFi)
Energy saving system
Workable for both Li ion battery and AC adapter
Shoulder strap and belt clip included
Label design software available

*1: DC16.0V、printing ratio 12.5%、standard model
＊Specifications are subject to be changed for improvement without notice.

Request Quote

Downloads

Specifications

Model	SM2-41
Printing method	Direct line thermal
Paper width	50-115mm
Printing width	Max. 104mm
Paper roll diameter	Max φ58mm
Number of dots	832dots
Resolution	8dots/mm (203dpi)
Printing speed	Max. 150mm/sec.
Paper loading	Drop-in system
Interface	Bluetooth/ USB/ RS-232C/ IrDA,（Option）Wi-Fi
Charactors	ASCⅡ: ASCII, International character, Katakana, PC-437/850 Other Font set for 18 languages Japanese Font: JIS X 0208-1990 User defined: External,Download character
Font/Dots	ASCⅡ16 dots : 9×16 dots(W×H) ASCⅡ24 dots : 12×24 dots(W×H) Jfont 16 dots: 16×16 dots(W×H) Jfonrt 24 dots: 24×24 dots(W×H)
Paper sensor	Paper end sensor, Cover open sensor
Memory	Input buffer 30k bytes User memory 16k bytes
Logo registration	Down loaded bit image
Barcode	UPC-A/E , JAN13/8 , CODE39/93 , ITF , CODABAR , CODE128
2-dimensional barcode	QRcode , PDF417
Regulation	VCCI B
Printing life	Pulse activation : 100million pulses or more *DC14.8V, printing ratio 25%, at room temperature Abrasion resistance : 100Km or more
Fall down shocking resistance	1.0m (by our standard)
Power supply	Li-ion battery (DC14.8V, 2200ｍAh) / AC adaptor
Current consumption	Standby ： 100mA or less Printing ： DC 14.8V Average 2.6A rms (Peak 5.8A) Battery life ： 100m *Conditions: Continueous print, Printing density 100％, Printing ratio30%, New battey with full capacity
用紙検知センサー	ペーパーエンドセンサー、カバーオープンセンサー
Operating condition	-15℃ – +50℃/20％RH – 85％RH (no condensation)
Storage condition	-20℃ – +60℃/10％RH – 90％RH (no condensation)
Dimensions (W×D×H)	157 x 138.6 x 67mm
Weight	580g (Thermal paper ･ Battery not included)

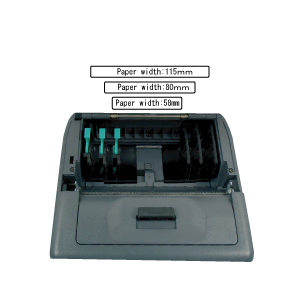

Paper spec	Width: 50-115mm Thickness: 59-154um Outside diameter: φ58mm or less
Features	Receipt and Peel-Off label model selectable
