SANEI ELECTRIC INC.

SK4-31

Features

・Small and compact design

・Three ways of paper position support

・150mm/sec speed pining *1

・A good balance of performance and cost

・LED Bezel option and Anti-paper Jam Bezel option available

・Windows Utility driver with Remote Status monitor function available

・Made in Japan

・Label design software available

*LB-SK4 is still under development. Schedule is TBA.

*Note1：With Sanei AC adapter, printing rate less than 25%.

*Specifications are subject to be changed for improvement without notice

Request Quote

Downloads

Movie

Sanei entry class thermal Kiosk printer SK4 with Anti-Paper Jam bezel

Specifications

Printing method	Direct line thermal
Paper width	80mm
Print width	72mm
Paper roll diameter	Max.φ83mm
Paper thickness	59 to 85um (52g/m2 to 72g/m2)
Paper core diameter	Internal φ12mm
Number of dots	576 dots
Resolution	8 dots/mm (203dpi)
Printing speed	150mm/sec. (max.)
Paper Sensors	Near end Sensor/Paper empty Sensor BM(Black mark) Sensor
Paper near-end	φ21.0 mm / φ24.5mm / φ35.0mm
Cutter	Partial / Full cut
Interface	Serial(RS-232C), USB
Character type	ASCⅡ: PC437/850/852/857/ 858/863/865/866/860/862/864/737, WPC1252/1252_2/1254/1250/1251 Download: Available
Font / Dots / Lines	Printing width: 72mm ASCⅡ 16 dots: 8 x 16 dots (WxH), 72 lines ASCⅡ 24 dots: 12 x 24 dots (WxH), 48 lines
Memory	Input buffer 8k bytes, User memory, Non-volatile memory
Logo registration	Download bit image
Barcode	1D: UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128, GS1 Databar Omni-directional, Truncated, Limited, Stacked, Stacked Omni-directional 2D : QR, MaxiCode, MicroPDF417, PDF417, DataMatrix, MicroQRCode
Regulation	VCCI, FCC, CE, CLASS A
Printing life	Pulse activition: 100 million pulses or more Abrasion resistance: 100Km or more
Cutter life	Cutting life 1 million cuts or more (Thickness 75um (60 g/m2)/ or less)
Power supply	DC Power supply DC 24V±5% / TYP 2.7A
Current consumption	Standby： 50mA or less Printing： Average 2.5A (Peak 7.5A) *DC 24.0V, Printing rate 12.5%%, at room temperature
Operating environment	Temperature: -5 to 50 ℃ Printing quality is guaranteed from +5 to 35 ℃ Humidity: 20%RH to 80%RH (No condensation)
Storage environment	Temperature: -20 to 70 ℃ Humidity: 10%RH to 90%RH (No condensation)

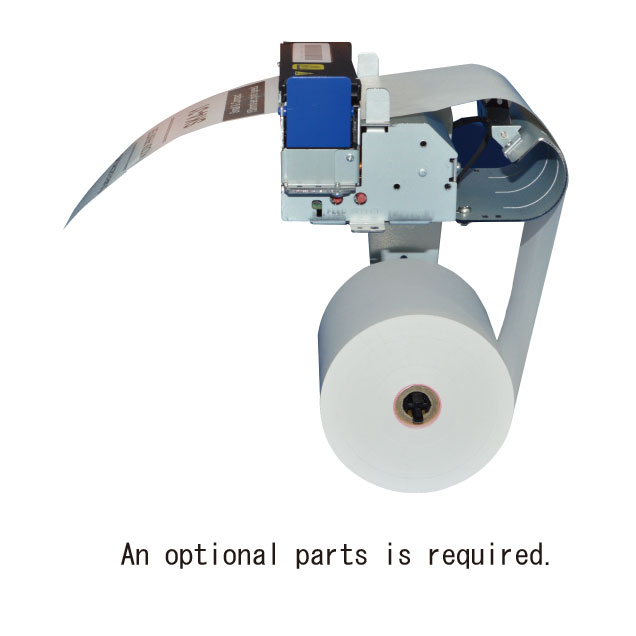

Dimensions (W×D×H)	Standard position of roll paper: 106 x 150 x 81.7mm Top position of roll paper: 106×75×130.2mm Bottom position of roll paper: 106×108.7×143.8mm
Weight	Approx. 410g (without paper roll)
Features	small & compact design 3 paper roll positions support Made in Japan
