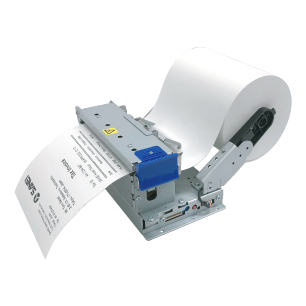

SK1-41

Features
  • Fully opening paper cover provides easy paper insert

  • 4-inch Paper width (80/83/112mm)

  • 150mm/sec. (max.) high speed printing *1

  • Paper core diameter 12/25.4mm changeable

  • Paper diameter upto 120mm available (by change of paper holder position)

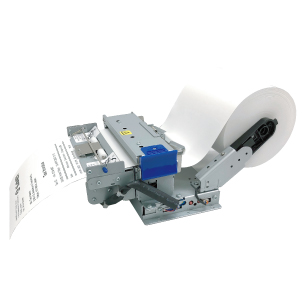

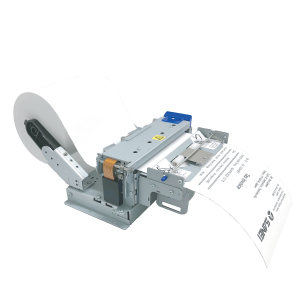

  • With presenter model available

  • 120µm thick paper available (thickness from 59µm to 120µm)

  • Interface: RS-232C,USB

  • Made in Japan

  • Label design software available

*1:Use AC adapter, printing rate less than 25%
*Specifications are subject to be changed for improvement without notice.

Specifications
Printing method

Direct line thermal

Paper width

80mm / 83mm / 112mm

Print width

72mm / 80mm /104mm

Paper roll diameter

Max. Φ120mm
Max. Φ254mm with an optional large paper holder

Number of dots

576 dots / 640 dots / 832 dots

Resolution

8 dots/mm (203dpi)

Printing speed

150mm/sec. (max.)

Interface

Serial(RS-232C), USB

Character type

ASCⅡ: PC437/850/852/857/858/863/865/866/860/862,
WPC1252/1252_2/1254/1250/1251

Download: Available

Font / Dots / Lines

Printing width: 72mm / 80mm / 104mm

ASCⅡ 16 dots: 8 x 16 dots (WxH), 104 lines

ASCⅡ 24 dots: 12 x 24 dots (WxH), 69 lines

Paper sensor

Near end sensor/ Reflection sensor / Gap sensor (option)

Memory

Input buffer 8k bytes, User memory, Non-volatile memory



Logo registration

Download bit image

Barcode

1D: UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128

2D: (option) QR, MicroQR, Maxicode, MicroPDF417, PDF417, DataMatrix

Command systems

ESC/POS Conformity

*ESC/POS is  registered trade mark of Seiko Epson Corporation.

Regulation

VCCI, FCC, CE, CLASS A

Printing life

Pulse activition: 200 million pulses or more
Abrasion resistance: 150Km or more

Cutter life

Cutting life: 1.0 million cuts or more (Thickness: 75µm or less)

Power supply

DC power supply: DC 24V±5% / TYP 2.7A (Peak 7.5A)



Current consumption

Standby: 70mA or less
Printing: Ave. 2.5A

*DC 24.0V, Printing rate 12.5%, at room temperature

Operating environment

Temperature: -20 to 60 ℃
Printing quality is guaranteed from +5 to 40 ℃

Humidity 20%RH to 80%RH (No condensation)

Storage environment

Temperature: -30 to 70 ℃

Humidity: 10%RH to 90%RH (No condensation)

Dimensions (W×D×H)

φ83mm: 160.9×143.1×76.3mm
φ102mm:160.9×151.2×82.2mm
φ120mm:160.9×159.3×88.1mm

Weight

885g (without paper roll)

Features

Fully opening paper cover provides easy paper insert

Made in Japan
